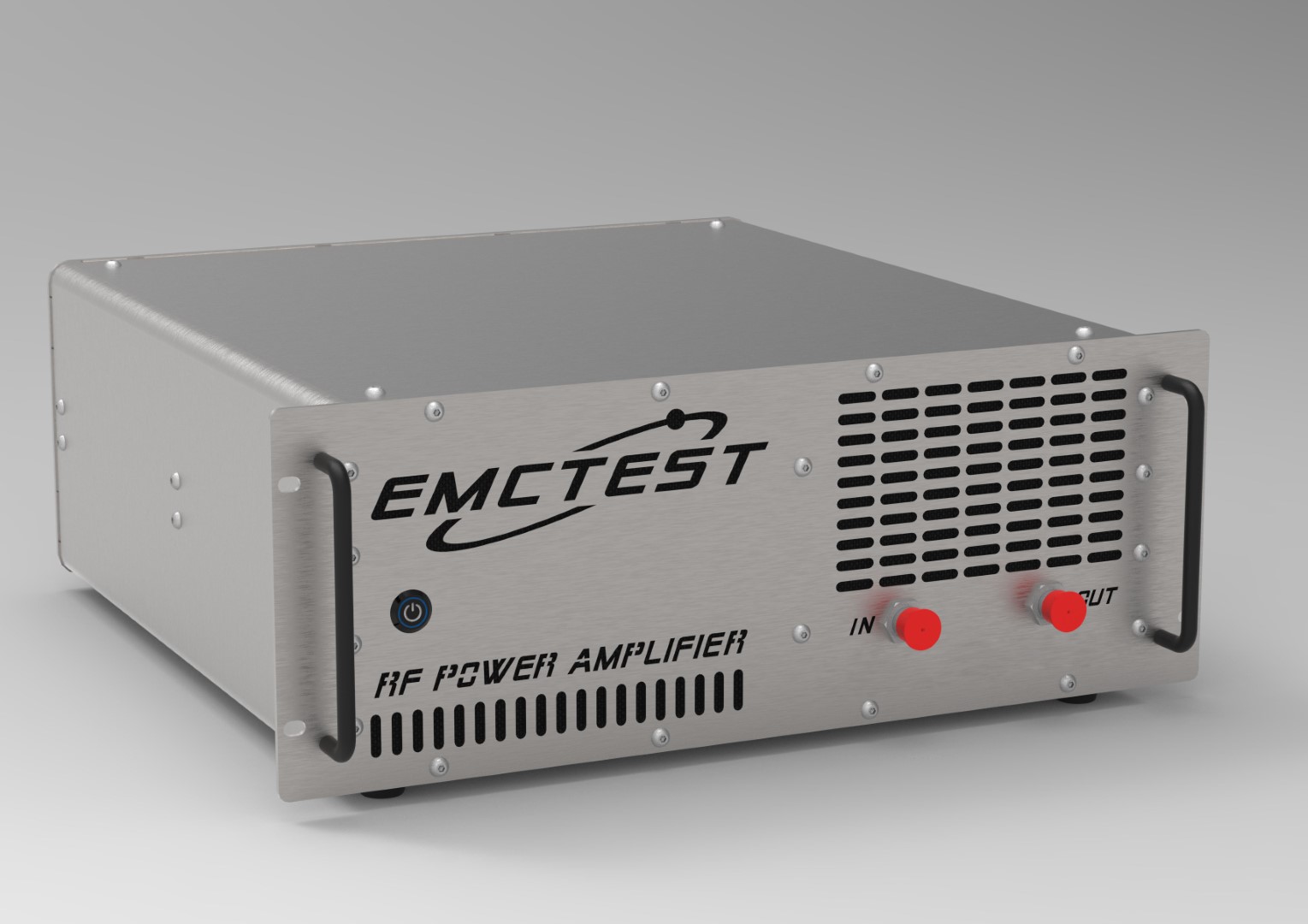

EMC04G07G50C
RF POWER AMPLIFIER
400 MHz - 700 MHz / 100 Watts
The EMC04G07G50C is a broadband high-power amplifier operating between 400 MHz and 700 MHz.
Delivering a minimum saturated output power of 100 W with a gain of 50 dB, this amplifier utilizes advanced solid-state technology to ensure exceptional power performance, long-term reliability, and high efficiency. It is ideal for multi-octave broadband high-power RF applications, UHF linear applications, and EMC immunity testing.
Key Features
- Solid-State Class AB Design – Proven architecture for durability and performance
- Ultra-Broadband Operation – Instantaneous coverage across the whole frequency band
- Supports CW, AM, and FM Modulations – Other formats available upon request
- Built-In Control & Protection – Intelligent circuitry ensures safe and optimal operation
- Stackable & Rack-Mountable – Easy integration into lab and test setups
- Versatile – Ideal for a wide variety of laboratory testing applications
- High Efficiency & Rugged Construction – Built to perform in harsh environments
- No frills - One button operation and you are ready for testing
Specifications
| Frequency Range | 400 - 700 MHz |
| Saturated Power (Psat) | 100 W (min) |
| Power Gain | 50 dB (typ) |
| Gain Flatness | ± 2.0 dB (max) |
| Harmonics (@ 50W) | -15 dBc (typ) |
| Spurious Signals | -60 dBc (typ) |
| Input Return Loss | -10 dB (max) |
| Power Supply | 100-240 V @ 50/60 Hz |
| Connectors | N-Type Precision Female |
| Cooling | Forced Air |
| Dimensions (LxWxH) | 485 x 482 x 180 mm |
| Weight | 20 kg |
| Operating Temp | -40 to +60 °C |

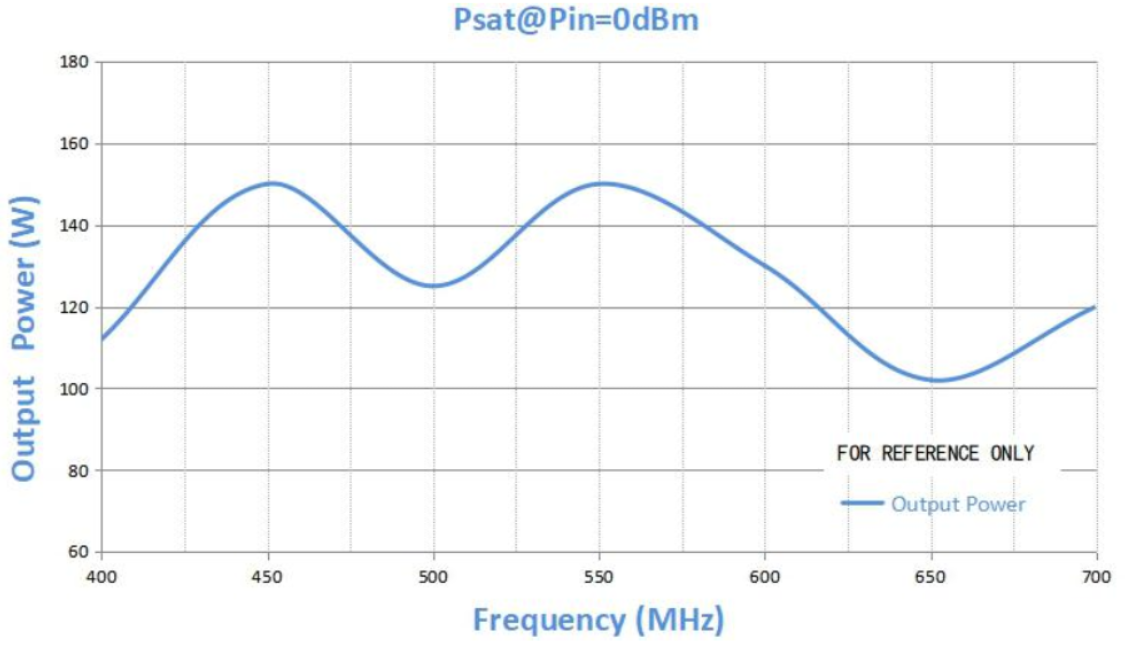

Attachments & Performance Data
