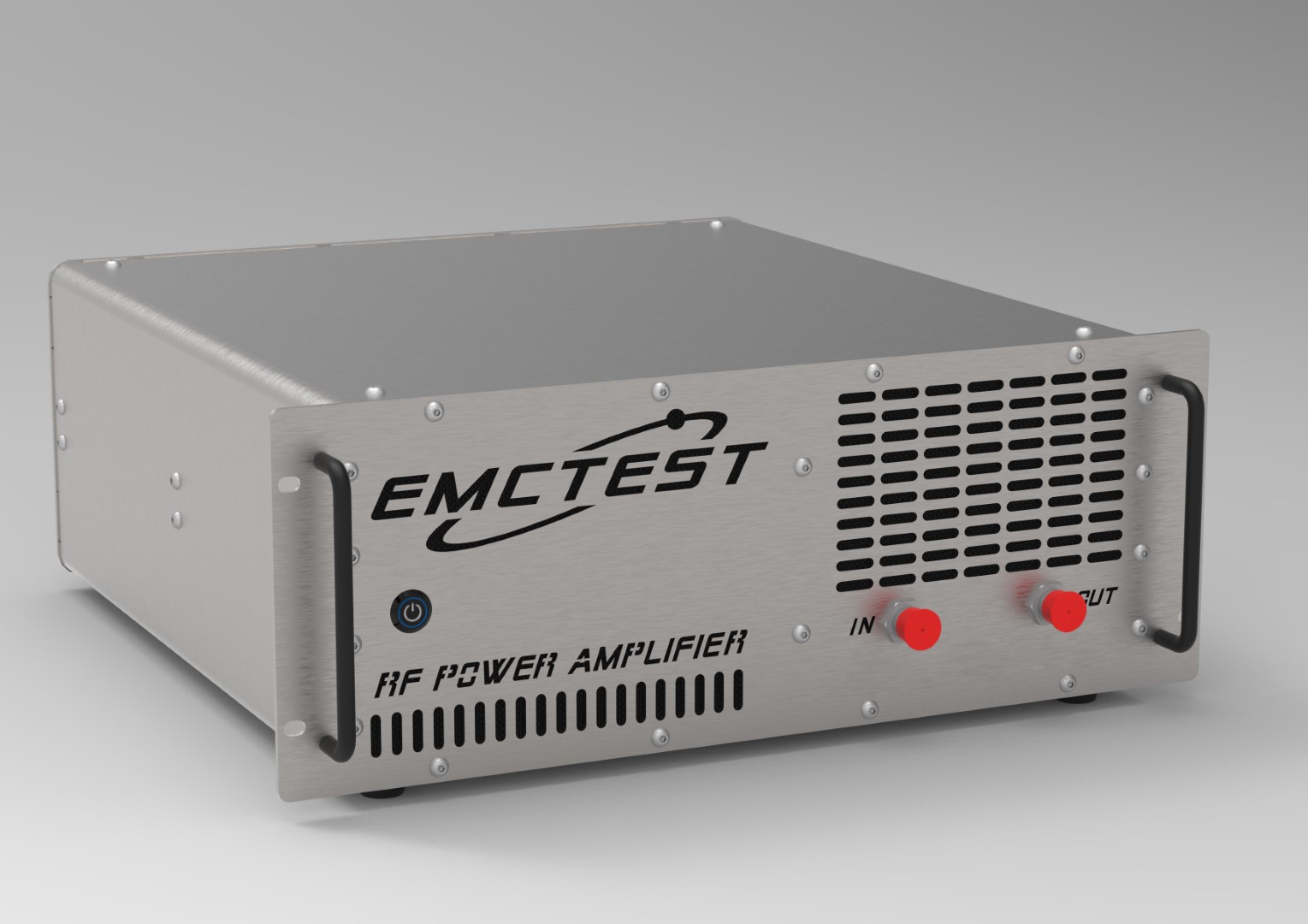

EMC25M04G45D
RF POWER AMPLIFIER
25 MHz - 400 MHz / 30 Watts
The EMC25M04G45D is a broadband, and high-efficiency amplifier designed for radiated immunity testing, broadband mobile jamming, and other high-power linear applications.
Powered by advanced GaN solid-state technology and chip-and-wire assembly, this amplifier delivers exceptional power density, low distortion, and a wide dynamic range, all housed in a rugged stainless steel enclosure. Whether you're operating with CW, AM, or FM signals, the unit is engineered to perform reliably and efficiently under the most demanding conditions.
Key Features
- Solid-State Class AB Design – Proven architecture for durability and performance
- Ultra-Broadband Operation – Instantaneous coverage across the whole frequency band
- Supports CW, AM, and FM Modulations – Other formats available upon request
- Built-In Control & Protection – Intelligent circuitry ensures safe and optimal operation
- Stackable & Rack-Mountable – Easy integration into lab and test setups
- Versatile – Ideal for a wide variety of laboratory testing applications
- High Efficiency & Rugged Construction – Built to perform in harsh environments
- No frills - One button operation and you are ready for testing
Specifications
| Frequency Range | 25 - 400 MHz |
| Output Power (Psat) | 30 W |
| Gain | 44.8 dB |
| Gain Flatness | ± 1.5 - 2 dB |
| Input Return Loss | -10 dB |
| Harmonics (2nd @ Psat) | -15 dBc |
| Spurious Signals | -65 dBc |
| Power Supply | 100-240 V @ 50/60 Hz |
| Connectors | N-Type Precision Female |
| Cooling | Forced Air |
| Dimensions (LxWxH) | 485 x 482 x 180 mm |
| Weight | 20 kg |
| Operating Temp | -40 to +60 °C |
