EMC80M1G50C
RF POWER AMPLIFIER
80 MHz - 1 GHz / 100 Watts
The EMC80M1G50C is a broadband high-power amplifier operating between 80 MHz and 1 GHz.
Delivering a typical saturated output power of 100 W (50 dBm) with a gain of 50 dB, this amplifier ensures exceptional power performance, long-term reliability, and high efficiency. It is ideal for broadband high-power RF applications, UHF testing, and EMC immunity standards.
Key Features
- Solid-State Class AB Design – Proven architecture for durability and performance
- Ultra-Broadband Operation – Instantaneous coverage across the whole frequency band
- Supports CW, AM, and FM Modulations – Other formats available upon request
- Built-In Control & Protection – Intelligent circuitry ensures safe and optimal operation
- Stackable & Rack-Mountable – Easy integration into lab and test setups
- Versatile – Ideal for a wide variety of laboratory testing applications
- High Efficiency & Rugged Construction – Built to perform in harsh environments
- No frills - One button operation and you are ready for testing
Specifications
| Frequency Range | 80 MHz - 1 GHz |
| Saturated Power (Psat) | 100 W (typ) @ 50 dBm |
| Power Gain | 50 dB (typ) |
| Gain Flatness | ± 2.0 dB (max) |
| Harmonics (@ 80W) | -10 dBc (typ) |
| Spurious Signals | -55 dBc (typ) |
| Input Return Loss | -10 dB (typ) |
| Power Supply | 100-240 V @ 50/60 Hz |
| Connectors | N-Type Precision Female |
| Cooling | Forced Air |
| Dimensions (LxWxH) | 485 x 482 x 180 mm |
| Weight | 20 kg |
| Operating Temp | -40 to +60 °C |

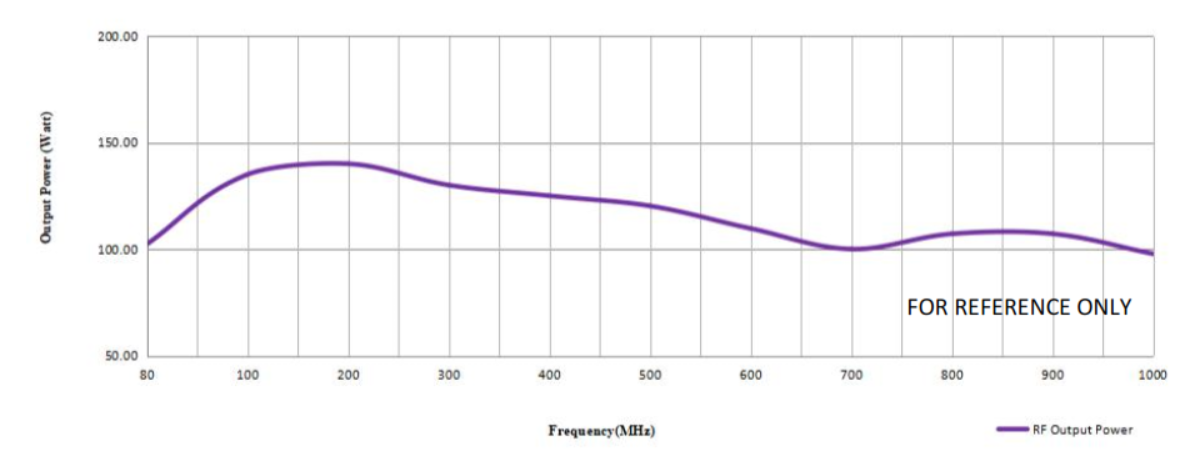

Attachments & Performance Data
