射频功率放大器
The EMC1G6G50C2 is a broadband, high-efficiency solid-state power amplifier operating between 1 GHz and 6 GHz, designed for radiated immunity testing, broadband mobile jamming, and other high-power RF applications.
Powered by advanced GaN (Gallium Nitride) technology, this amplifier delivers a minimum saturated output power of 100 W with exceptional power-to-volume ratio and wide dynamic range. Housed in a rugged rack-mountable enclosure, it features a built-in universal power supply and forced air cooling to ensure reliable operation.
Built-in intelligent control circuitry provides comprehensive protection against over-temperature, over-current, and over-voltage conditions. Whether you're operating with CW, AM, or FM signals, the unit is engineered to perform reliably and efficiently under the most demanding laboratory and field environments.
主要特点
- Solid-State Class AB Design – Proven GaN architecture for durability and performance
- Ultra-Broadband Operation – Instantaneous coverage from 1 GHz to 6 GHz
- 支持 CW、AM 和 FM 调制 – 可根据要求提供其他格式
- Built-In Control & Protection – Over-temperature, over-current, and over-voltage protection
- 可堆叠和机架安装 – 轻松集成到实验室和测试设置中
- Versatile – Ideal for jamming, EMC, test and measurement applications
- 高效率和坚固的结构 - 专为在恶劣环境中运行而设计
- 简洁 - 一键操作，即可开始测试
规格
| 频率范围 | 1 - 6 GHz |
| 输出功率（Psat） | 100 瓦（分钟） |
| 功率增益 | 50 分贝（典型值） |
| 增益平坦度 | ±2.5 分贝（典型值） |
| 谐波（@50W） | -15 dBc（典型值） |
| 杂散信号 | -60 dBc（典型值） |
| 输入回波损耗 | -10 分贝（最大） |
| 电源 | 100-240 伏 50/60 赫兹 |
| 连接器 | N型精密母头 |
| 冷却 | 强制通风 |
| 尺寸（长x宽x高） | 485×482×180 毫米 |
| 重量 | 20 千克 |
| 工作温度 | -40 至 +60 ℃ |

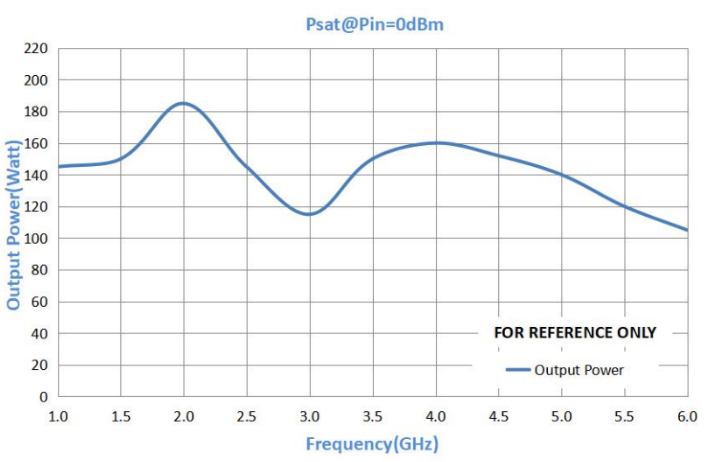

附件和性能数据
