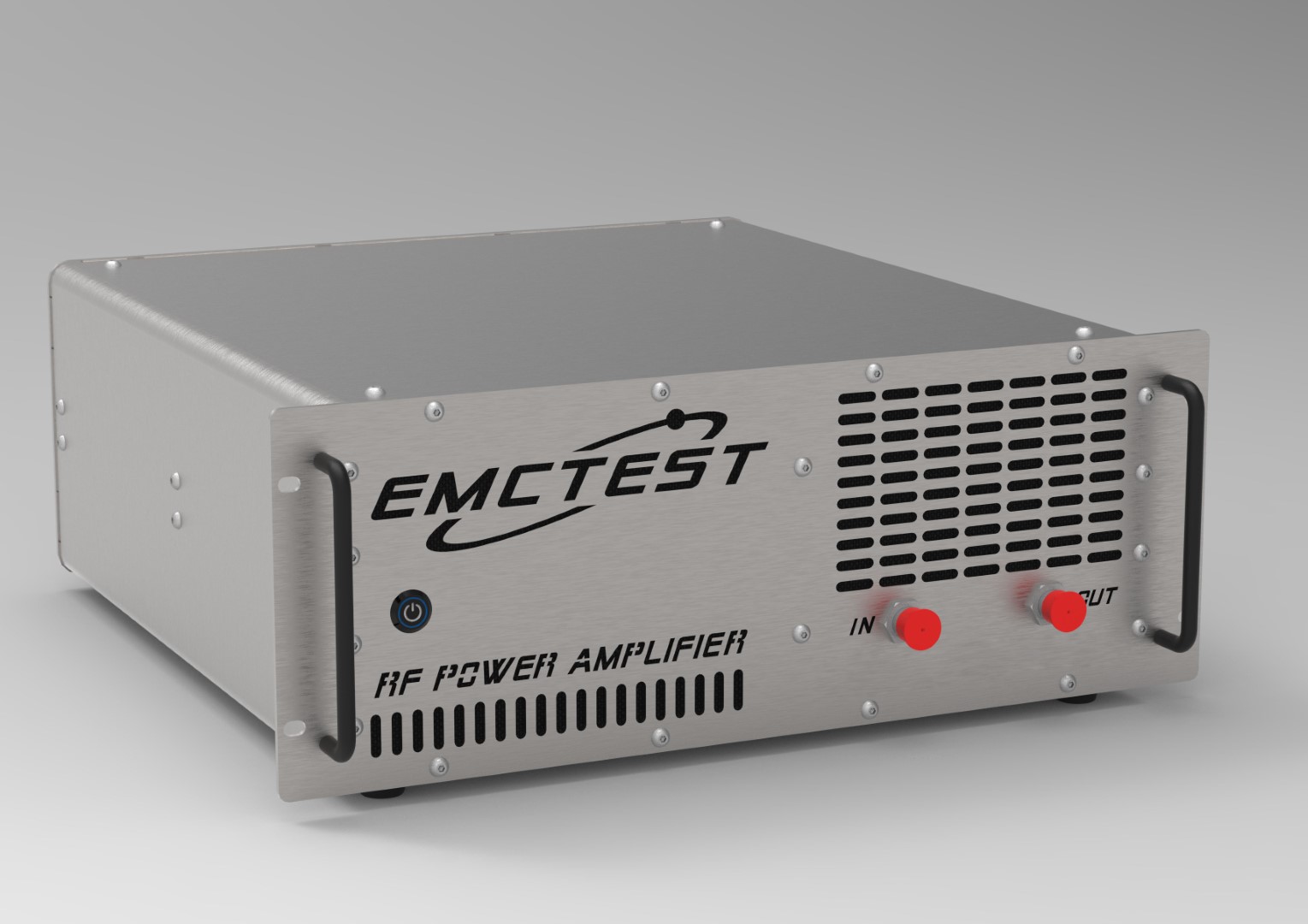

RF Power Amplifier -
100W -
80MHz - 1GHz
Operating across the 80 MHz to 1 GHz band with 100 watts of typical saturated RF power and 50 dB of gain, this amplifier utilizes solid-state Class AB technology to provide a reliable, broadband solution for EMC immunity testing and UHF applications. Model: EMC80M1G50C .
Technical Specs
Model
EMC80M1G50C
Manufacturer
EMCTEST Technologies
Conditions
Brand New
Frequency
80MHz - 1GHz
Power
100W
Gain
50 dB
Impedance
50 Ω
Cooling
Forced Air
Connector Type
N-Type Precision Female
Dimensions
485 x 482 x 180 mm
Weight
20 Kg
Operating Temperature
-40°C +60°C
Power Supply
100–240 V @ 50/60 Hz
EMC Test Standards
IEC / EN 61000-4-3
Radiated RF immunity test for commercial & industrial equipment.
ISO 11451-2
Radiated immunity for whole vehicles in anechoic chambers (OEM automotive).
ISO 11452-2
Radiated immunity for automotive components in anechoic chambers.
MIL-STD-461 RS103
Radiated susceptibility from 2 MHz to 40 GHz for military equipment.
RTCA DO-160G Sec. 20
Radiated RF susceptibility tests for avionics and aircraft systems.
IEC / EN 61000-4-6
Conducted RF immunity using coupling/decoupling networks (CDN).
ISO 11452-4 (BCI)
Bulk current injection RF immunity test for automotive wiring harnesses.
MIL-STD-461 CS114/115/116
Conducted susceptibility tests for military electronic equipment.
EN 60601-1-2
EMC requirements for medical electrical equipment and systems.
