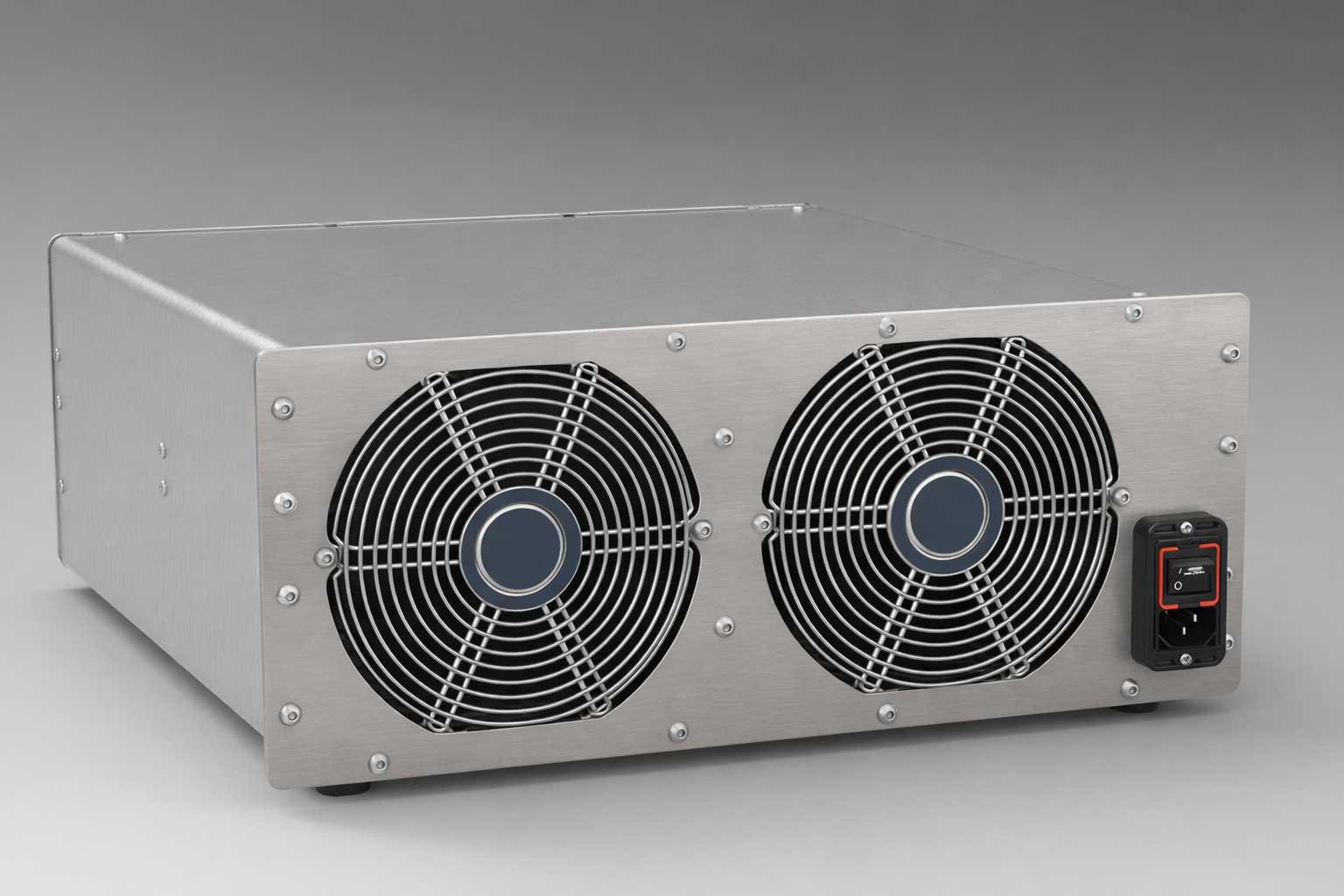

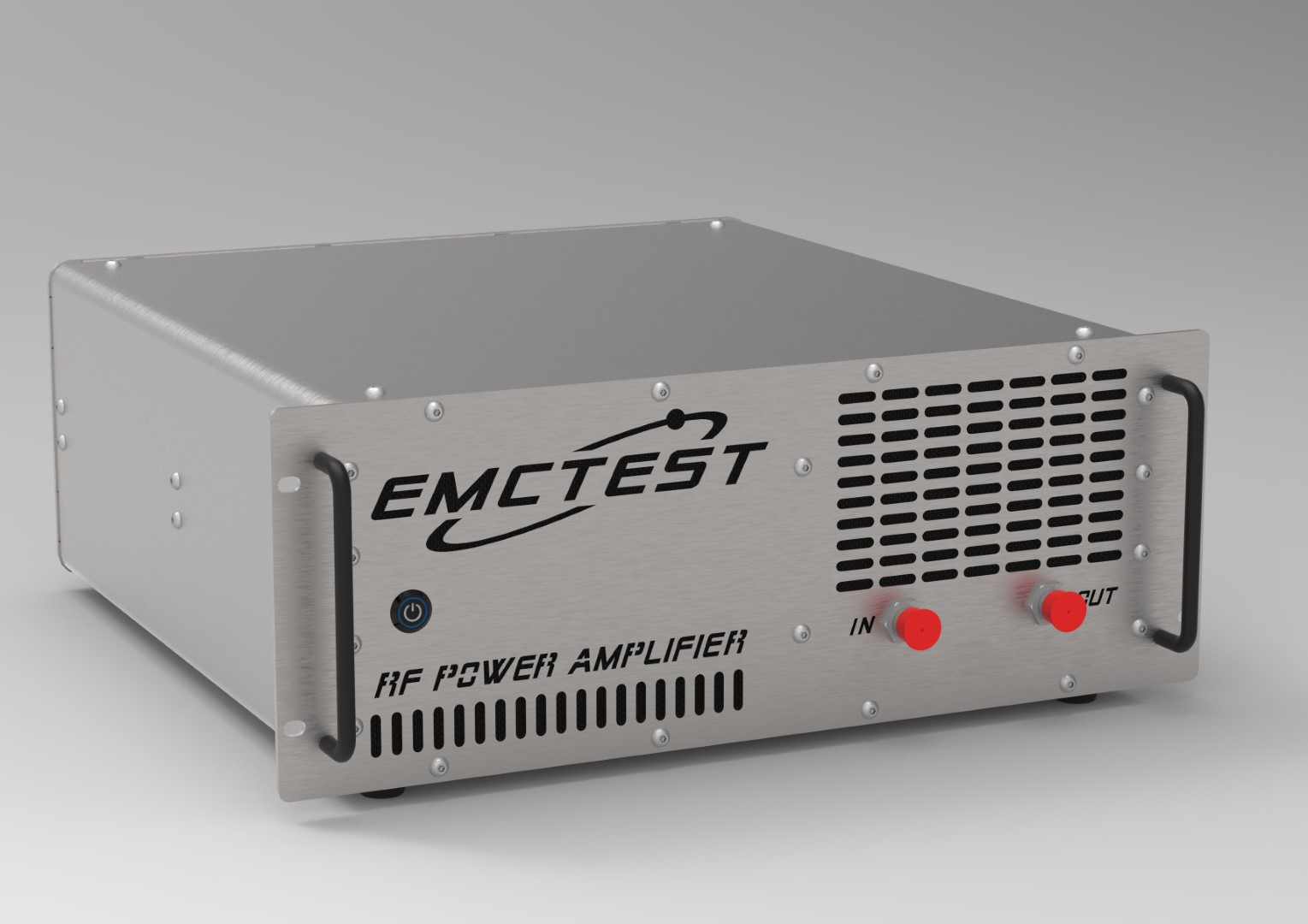

RF Power Amplifier -
30W -
25MHz - 400MHz
Delivering 30 W across the 25–400 MHz band, EMC25M04G45D provides robust broadband power for radiated immunity, communication, and RF susceptibility testing, offering excellent gain flatness and stable performance throughout the entire VHF/UHF range.
Technical Specs
Model
EMC25M04G45D
Manufacturer
EMCTEST Technologies
Conditions
Brand New
Frequency
25MHz - 400MHz
Power
30W
Gain
45 dB
Impedance
50 Ω
Cooling
Forced Air
Connector Type
N-type
Dimensions
485 × 482 × 180 mm
Weight
20 Kg
Operating Temperature
-40°C +60°C
Power Supply
100–240 V @ 50/60 Hz
EMC Test Standards
IEC / EN 61000-4-3
Radiated RF immunity test for commercial & industrial equipment.
ISO 11451-2
Radiated immunity for whole vehicles in anechoic chambers (OEM automotive).
ISO 11452-2
Radiated immunity for automotive components in anechoic chambers.
MIL-STD-461 RS103
Radiated susceptibility from 2 MHz to 40 GHz for military equipment.
RTCA DO-160G Sec. 20
Radiated RF susceptibility tests for avionics and aircraft systems.
IEC / EN 61000-4-6
Conducted RF immunity using coupling/decoupling networks (CDN).
ISO 11452-4 (BCI)
Bulk current injection RF immunity test for automotive wiring harnesses.
MIL-STD-461 CS114/115/116
Conducted susceptibility tests for military electronic equipment.
EN 60601-1-2
EMC requirements for medical electrical equipment and systems.
